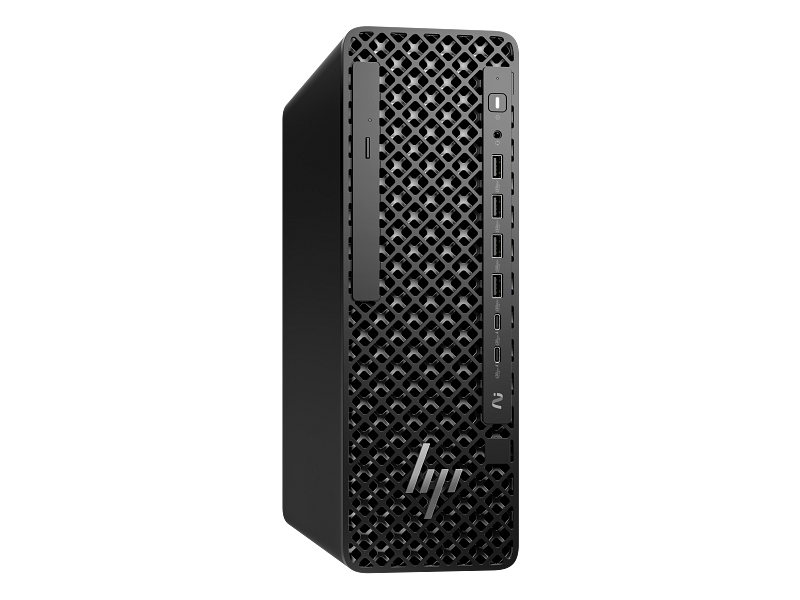

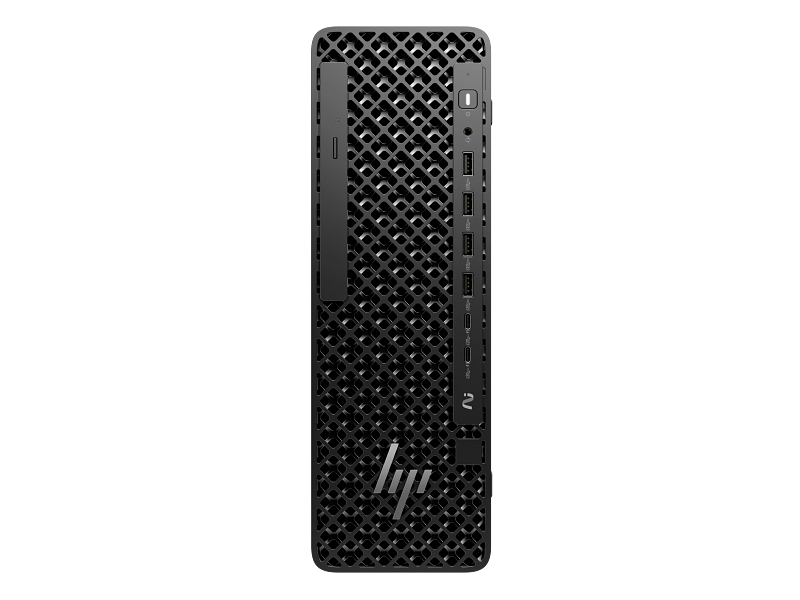

HP Z2 SFF G1i

Intel® Core™ Ultra 9 285K
Intel® Core™ Ultra 9 285
Intel® Core™ Ultra 7 265K
Intel® Core™ Ultra 7 265
Intel® Core™ Ultra 5 245K
Intel® Core™ Ultra 5 245
Intel® Core™ Ultra 5 235
Intel® Core™ Ultra 5 225

Windows 11 Pro
Windows 11 Home – HP recommends Windows 11 Pro for business
Linux® Ready
Ubuntu 24.04 LTS

(4) DDR5-5600 UDIMM slots ECC and non-ECC
128 GB DDR5-5600 MT/s ECC; 192 GB DDR5-5600 MT/s non-ECC
Transfer rates up to 5600 MT/s.

M.2 Solid-State Drive storage (SSD)
512 GB up to 4 TB HP Z Turbo Drive PCIe® NVMe™ M.2 SSD
512 GB up to 4 TB HP Z Turbo Drive PCIe® NVMe™ Opal 2 M.2 SSD
1 TB up to 2 TB HP Z Turbo Drive PCIe® Gen5 NVMe™ M.2 SSD
1 TB up to 2 TB HP Z Turbo Drive PCIe® Gen5 NVMe™ Opal 2 M.2 SSD
512 GB up to 2 TB Citadel PCIe® NVMe™ SSD M.2
512 GB up to 2 TB PCIe® NVMe™ FIPS 140-2 SED SSD
256 GB up to 1 TB PCIe® NVMe™ Value M.2 SSD
Hard Disk Drive storage 3.5 in
1 TB up to 12 TB SATA Enterprise HDD

Integrated:
Intel® Graphics
Discrete:
NVIDIA RTX™ 2000 Ada Generation (12 GB GDDR6 dedicated)
NVIDIA RTX™ 4000 SFF Ada Generation (20 GB GDDR6 dedicated)
NVIDIA RTX™ A1000 (8 GB GDDR6 dedicated)
NVIDIA® A400 ( 4 GB GDDR6 dedicated)

Front:
2 USB Type-C® 20Gbps signaling rate;
4 USB Type-A 10Gbps signaling rate;
1 headphone/microphone combo ;

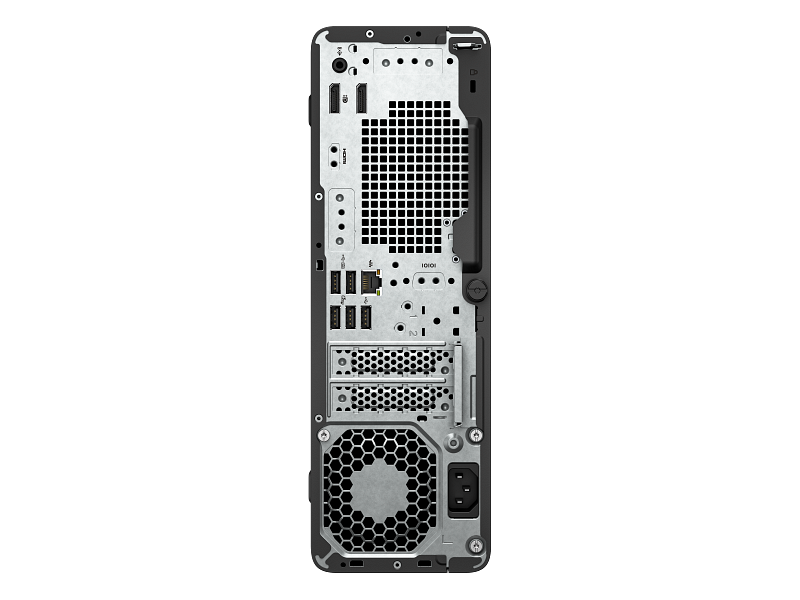

Rear:
2 USB Type-A 10Gbps signaling rate;
2 DisplayPort™ 1.4; 1 RJ-45;
1 audio line-in/line-out;
3 USB Type-A 480Mbps signaling rate ;
Optional Ports: Flex IO left side – choose one of the following options:
1 DisplayPort™ 2.1 UHBR20, 1 HDMI 2.1, 1 VGA, 1 Dual USB Type-A 5Gbps signaling rate, 1 Dual USB Type-C® 10Gbps signaling rate, 1 USB Type-C® 10Gbps signaling rate (USB Power Delivery, Alt Mode DisplayPort™1.4), 1 GbE LAN, 1 Thunderbolt™ 4, 2.5 GbE LAN. 10GbE LAN (10GBase-T), USB-based Serial port option, 1GbE Fiber LC NIC.
Flex IO (fly cable) – choose one of the following options:
1 Dual USB Type-A 5Gbps signaling rate, USB-based Serial port option, 1GbE Fiber LC NIC.; Serial Port kit

3.9 x 12.1 x 11.9 in; 10 x 30.8 x 30.3 cm; (Standard desktop orientation.);
19.6 x 7.9 x 15.5 in; 49.9 x 20 x 39.4 cm (Package)
Starting at 8.8 lb; Starting at 4.0 kg;
Starting at 14.2 lb; Starting at 6.5 kg (Package) ;
(Exact weight depends on configuration.)

WLAN:
Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.3 wireless card;
Intel® Wi-Fi 7 BE200 (2x2) and Bluetooth® 5.4 wireless card, non-vPro®

500 W internal power adapter, up to 92% efficiency, active PFC;
400 W external power adapter, up to 92% efficiency, active PFC

LAN:
Intel® I350-T4 4-port GbE NIC;
Integrated Intel® I219-LM PCIe® GbE;
NVIDIA® Mellanox ConnectX-6 DX Dual Port 10/25GbE SFP28 NIC;
Allied Telesis AT-2911T/2-901 dual-port 1GbE NIC;
Intel® i225-T1 single-port 2.5 GbE NIC;
Intel® X550-T2 dual-port NIC;

External: One slim ODD;
